nilCC Architecture

System Overview​

nilCC is a distributed system composed of several interconnected components that work together to provide secure, verifiable computation in Trusted Execution Environments. The architecture is designed to separate concerns between workload management, secure execution, and user interaction.

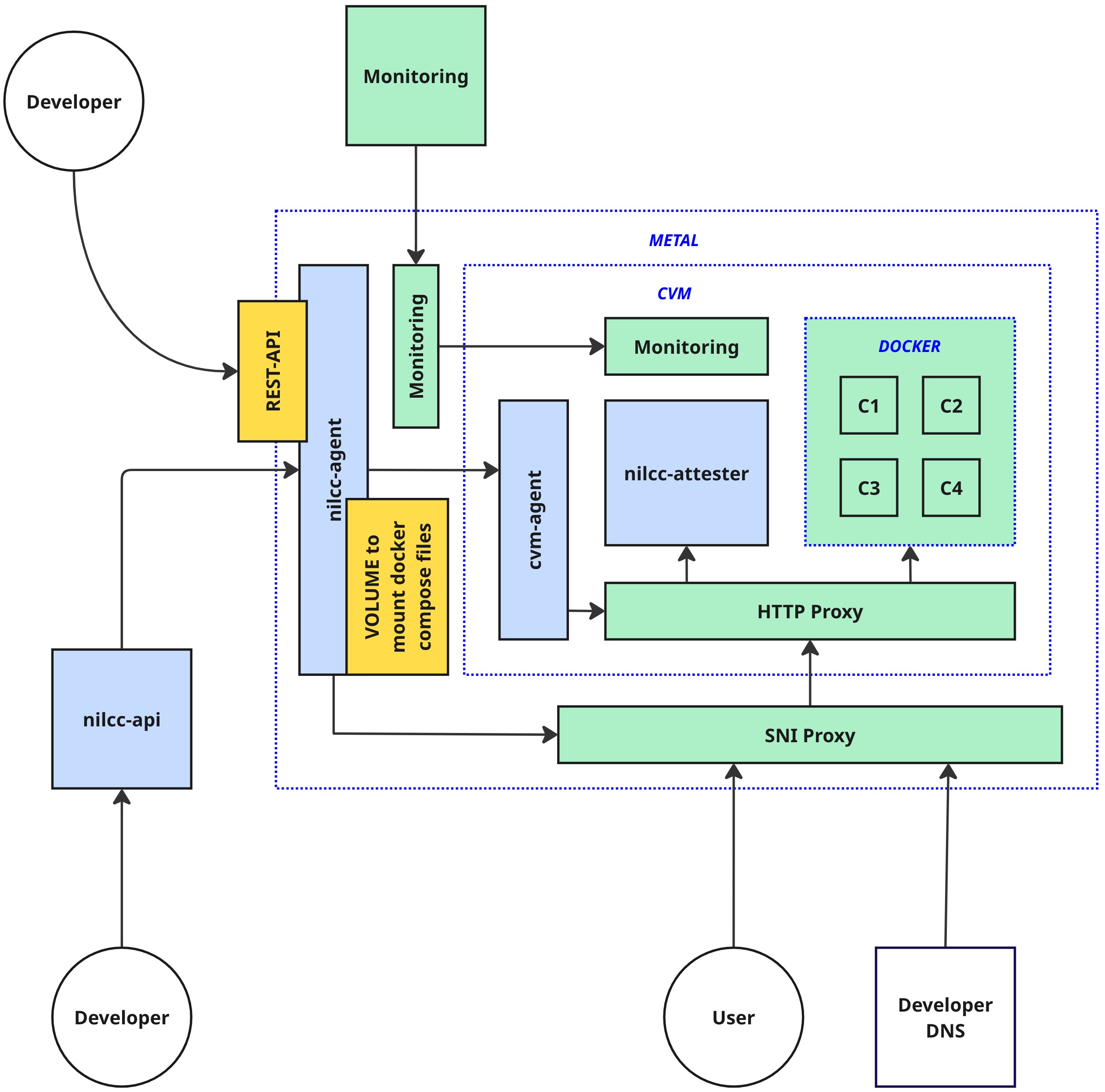

nilCC Components

Core Components​

nilcc-agent​

The nilcc-agent is the workload orchestrator that runs on each bare metal machine in the nilCC infrastructure. It serves as the bridge between the public API and the actual Confidential VMs.

Responsibilities​

  • CVM Lifecycle Management: Creates, starts, stops, and deletes Confidential VMs based on workload requirements
  • Resource Management: Tracks CPU, memory, GPU, and disk allocation to prevent overcommitment
  • Monitoring & Reporting: Monitors VM health and reports status/errors to nilcc-api
  • Log & Metrics Collection: Retrieves logs and system statistics from running CVMs

Communication​

  • Upward to nilcc-api: Registers on startup with a unique API token for authenticated communication
  • Downward to cvm-agent: Communicates with each VM's cvm-agent via a local-only HTTP API
  • Security: All API communication uses authentication tokens passed in HTTP headers

nilcc-attester​

The nilcc-attester runs as a container within each CVM's Docker Compose setup, providing automatic attestation generation made available through an API.

Key Features​

  • Automatic Attestation Generation: Generates AMD SEV-SNP attestations on startup
  • GPU Support: Additionally generates NVIDIA Confidential Compute attestations on GPU-enabled machines
  • Public Endpoint: Exposes attestation reports at /nilcc/api/v2/report
  • TLS Integration: Links attestation to the workload's TLS certificate fingerprint

Attestation Verification Flow​

  1. Client requests attestation report from the public endpoint
  2. Validates the attestation including signature verification and certificate chain validation with AMD's public key
  3. Verifies TLS fingerprint match between the HTTPS connection and attestation data
  4. Ensures authenticity by confirming the client is communicating with the attested machine

This design prevents man-in-the-middle attacks and provides cryptographic proof of the execution environment.

cvm-agent​

The cvm-agent runs as a systemd daemon inside each Confidential VM, managing the actual workload execution within the secure environment.

Core Functions​

  • Docker Compose Management: Launches and manages the user's containerized workload
  • Log Collection: Provides access to both cvm-agent logs and container logs
  • System Monitoring: Exposes CPU, memory, disk, and other system statistics
  • Container Health Monitoring: Monitors container status and reports issues

Security Design​

  • Local-only API: HTTP API is only accessible within the bare metal machine, not publicly exposed
  • Controlled Access: Only communicates with the nilcc-agent on the same physical host
  • Bootstrap Security: Waits for authenticated bootstrap request before starting workloads

Bootstrap Process​

The bootstrap process ensures secure workload initialization with proper credentials and configuration.

Initialization Phase

  1. cvm-agent starts but waits for bootstrap request from nilcc-agent
  2. Bootstrap request includes:
    • Docker Hub credentials (read-only access to avoid rate limits)
    • ZeroSSL credentials for TLS certificate generation
    • User-provided private registry credentials (if any)

Workload Deployment Phase

  1. Authentication: Perform docker login with all provided credentials
  2. Image Preparation: Run docker compose pull to download all required images
  3. Service Startup: Execute docker compose up with:
    • User's workload configuration
    • Caddy proxy container (for TLS termination)
    • nilcc-attester container (for attestation)
  4. Certificate Monitoring: Monitor Caddy for successful TLS certificate generation
  5. Operational Mode: Switch to log/stats serving once TLS is established

This staged approach provides better error handling and ensures all components are properly configured before workload execution begins.

nilcc-api​

The nilcc-api serves as the central control plane, providing the public interface for workload management and coordination across the entire nilCC infrastructure.

Primary Functions​

  • User Interface: Provides REST API endpoints for workload creation, management, and monitoring
  • Agent Coordination: Orchestrates multiple nilcc-agent instances across different bare metal hosts
  • Event Processing: Receives and processes status updates, errors, and events from agents
  • Resource Allocation: Makes decisions about workload placement based on available resources

Integration Points​

  • Upward to Users/UI: Serves the nilcc-ui dashboard and external API clients
  • Downward to Agents: Communicates with registered nilcc-agent instances using authentication tokens

This centralized design allows users to manage workloads across multiple physical hosts through a single, consistent API while maintaining security through token-based authentication.
